Internal vacuum lifters
Technical specifications
Inquire now
GZH-400V
Does not meet the requirements for site operation according to DIN EN 13155.
1-circuit system
1 vacuum circuit

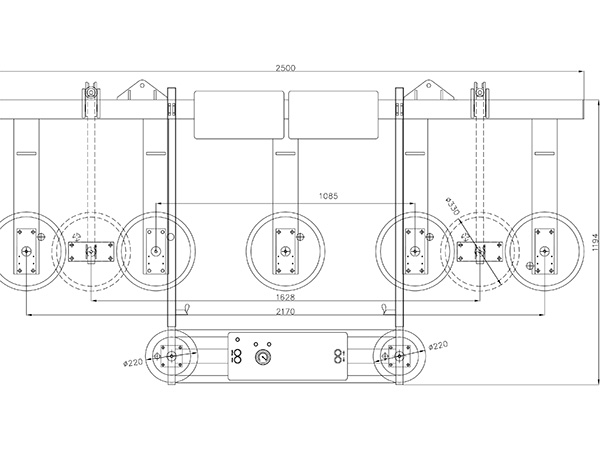

Suction pad
7 pieces, 150K and 2 pieces, 540K
Load capacity
1000 kg
Power supply
400 V mains operation
Furnishing
- Vacuum display, shows the current vacuum level
- Acoustic warning signal when vacuum is undershot

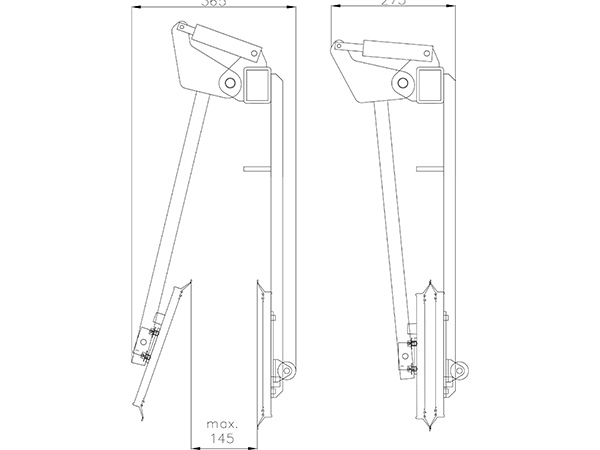

- Clamp open/close: hydraulic
Service
Height-adjustable control panel; suction/release button on the device; open/close pliers button on the device
