Internal vacuum lifters
Technical specifications
Inquire now

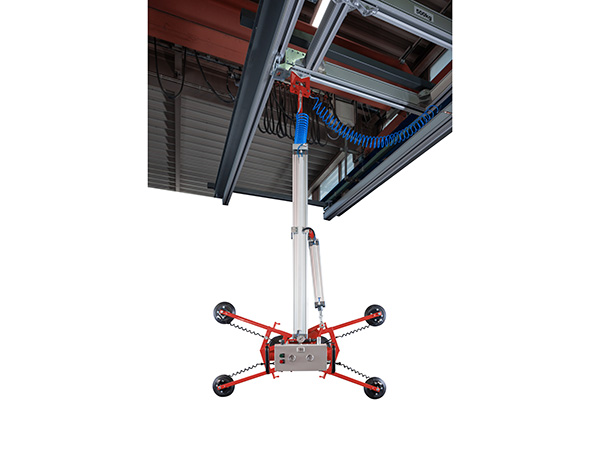

MD100-VEN
Does not meet the requirements for site operation according to DIN EN 13155.
1-circuit system
1 vacuum circuit, vacuum generation via Venturi nozzles
Suction pad
depending on the suction frame
Load capacity
max. 250 kg
Turn
100° pneumatic
Sway

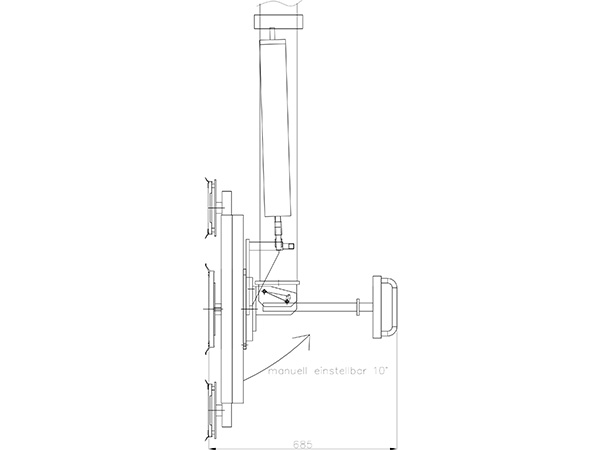

No, inclination manually adjustable 0-10°
Power supply
Compressed air
Furnishing
- Pressure indicator for compressed air
- Vacuum display, shows the current vacuum level
- Acoustic warning signal when vacuum is undershot
- Height adjustment with pneumatic lifting cylinder
Service
Suction-release button on the unit; Rotate button on the unit; Up-down button on the unit
Own weight
depending on the suction frame
Options
The MD100-VEN can be combined with many special suction frames.
