Internal vacuum lifters
Technical specifications
Inquire now

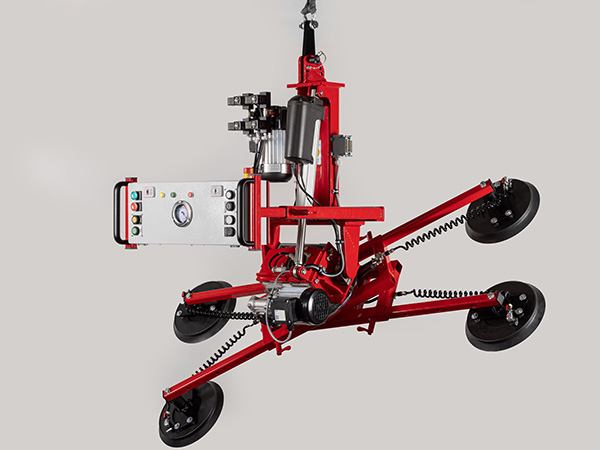

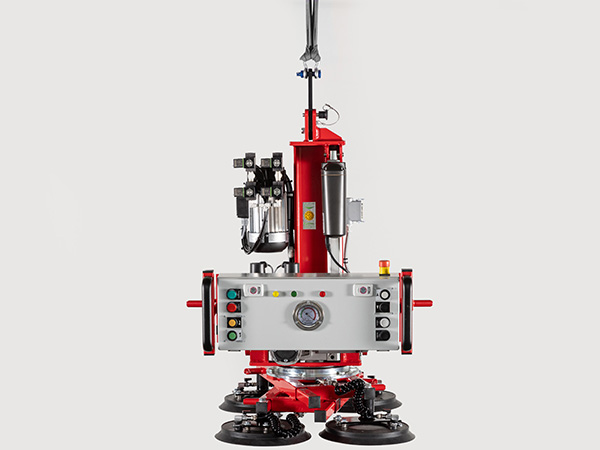

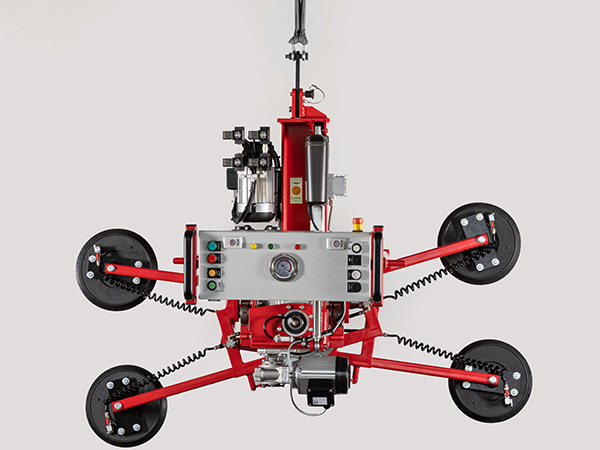

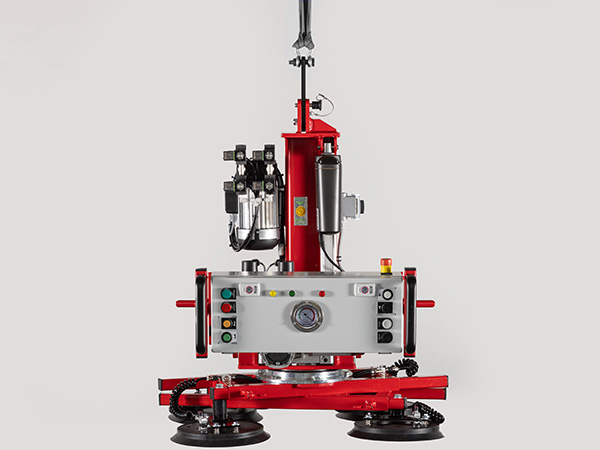

MDSEE-400V
Does not meet the requirements for site operation according to DIN EN 13155.
1-circuit system
1 vacuum circuit
Suction pad
depending on the suction frame
Load capacity
400 kg
Turn
360° electric
Sway
90° electric
Power supply
Mains operation 400 V
Furnishing
- Vacuum display, shows the current vacuum level
- Acoustic warning signal when vacuum is undershot
- Operating handle horizontally adjustable
Service
Suction-release button on the device; slew-rotate button on the device
Own weight
depending on the suction frame
Options
The MDSEE-400V can be combined with many special suction frames.
