Internal vacuum lifters
Technical specifications
Inquire now

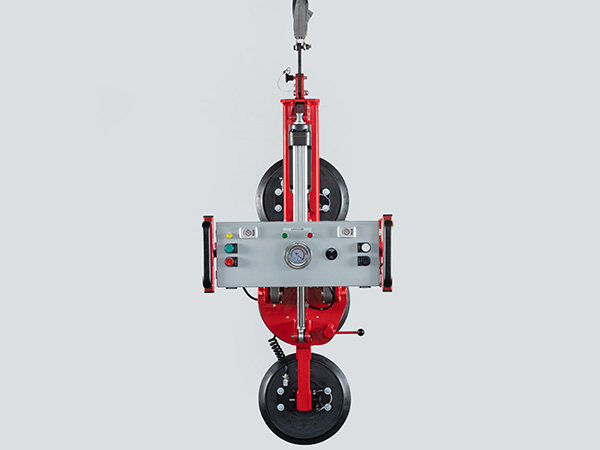

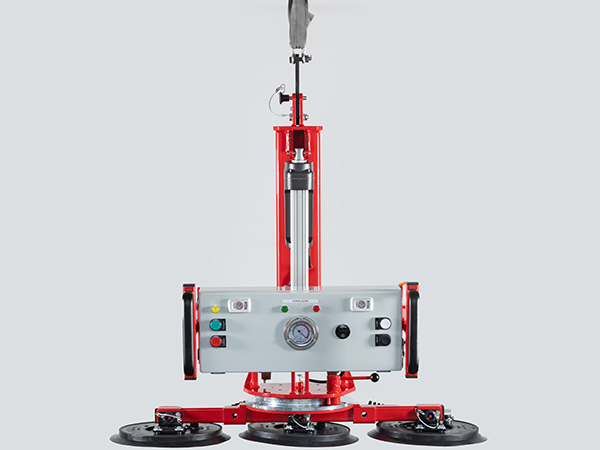

MDSME-12V
Does not meet the requirements for site operation according to DIN EN 13155.
1-circuit system
1 vacuum circuit
Suction pad
Type 150K
Load capacity
450 kg
Turn
360° manual, all 90° lockable
Sway
90° electric
Power supply
12 V battery mains-independent with integrated charger
Furnishing
- Vacuum display, shows the current vacuum level
- Acoustic warning signal when vacuum is undershot
- Voltage indicator, shows the battery charge level
Service
Suction-release button on the device; slew button on the device
Own weight
approx. 70 kg
Options
The MDSME-12V can be combined with many special suction frames.
