Internal vacuum lifters
Technical specifications

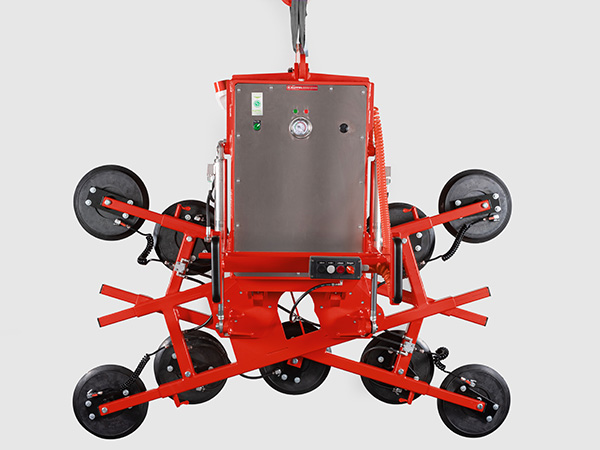

Inquire nowMS-400-H-GS
Does not meet the requirements for site operation according to DIN EN 13155.
1-circuit system
1 vacuum circuit
Suction pad
Type 540K
Load capacity
400 kg
Turn
No
Sway
90° hydraulic
Power supply
400 V mains operation
Furnishing
- Vacuum display, shows the current vacuum level
- Acoustic warning signal when vacuum is undershot
Service
Suction-release button on the device; slew button on the device
Own weight
depending on the suction frame
Options
The MS-400-H-GS is suitable for transporting curved glass.
