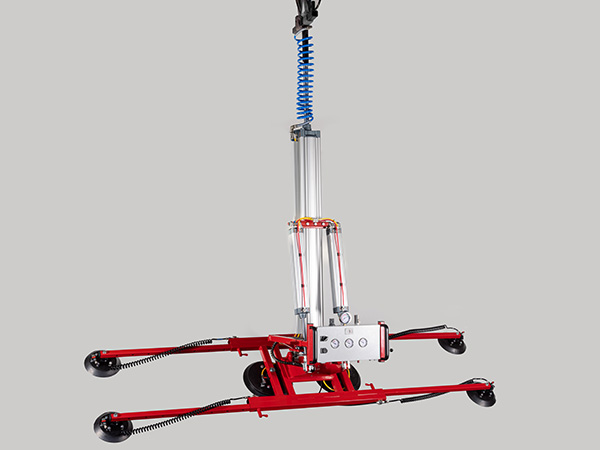

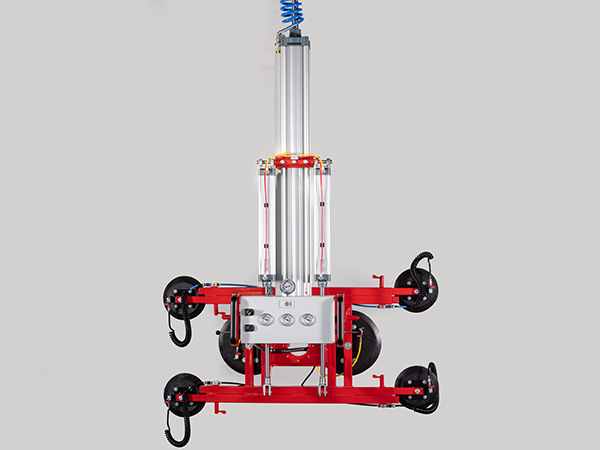

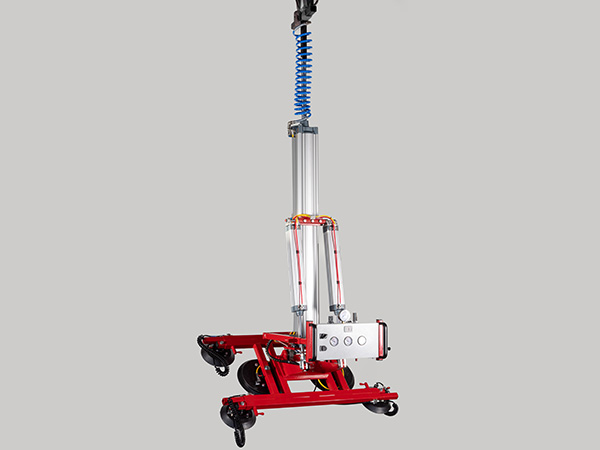

Internal vacuum lifters
Technical specifications
Inquire nowMS-VEN
Does not meet the requirements for site operation according to DIN EN 13155.
1-circuit system
1 vacuum circuit, vacuum generation via Venturi nozzles
Suction pad
depending on the suction frame
Load capacity
250 kg
Turn
No
Sway
90° pneumatic
Power supply
Compressed air
Furnishing
- Pressure indicator for compressed air
- Vacuum display, shows the current vacuum level
- Acoustic warning signal when vacuum is undershot
- Height adjustment with pneumatic lifting cylinder
Service
Suction-release button on the device; slew button on the device; up-down button on the device
Own weight
depending on the suction frame
Options
The MS-VEN can be combined with many special suction frames.
