Internal vacuum lifters
Technical specifications
Inquire now

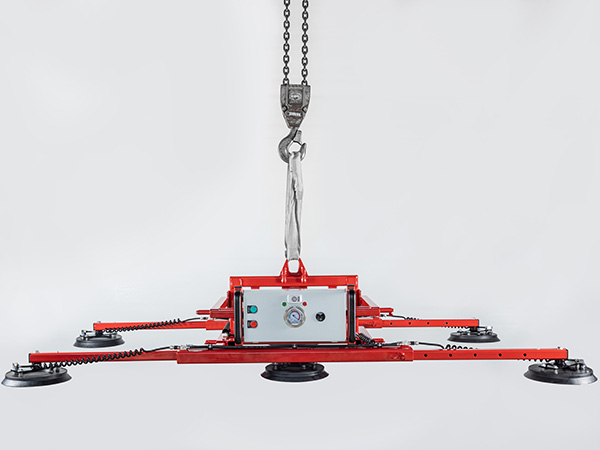

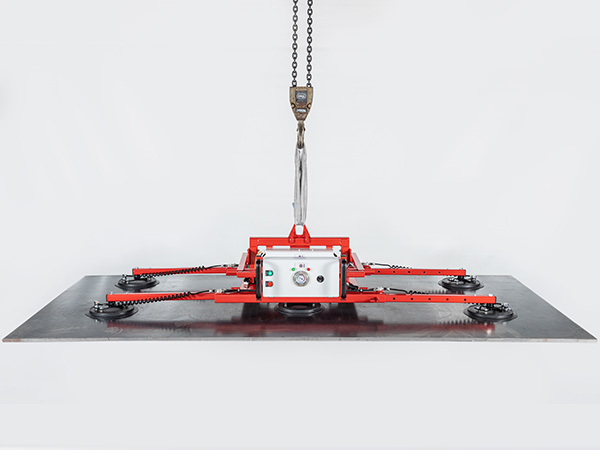

TR-H
Does not meet the requirements for site operation according to DIN EN 13155.
1-circuit system
1 vacuum circuit
Suction pad
6 pieces, type 388K
Load capacity
1000 kg
Turn
No
Sway
No
Power supply
400 V mains operation or battery 12 V
Furnishing
- Vacuum display, shows the current vacuum level
- Acoustic warning signal when vacuum is undershot
- Transport horizontal
Service
On the device
Options
The TR-H is available on request in many different variants in terms of frame size, load capacity, operation and power supply.
