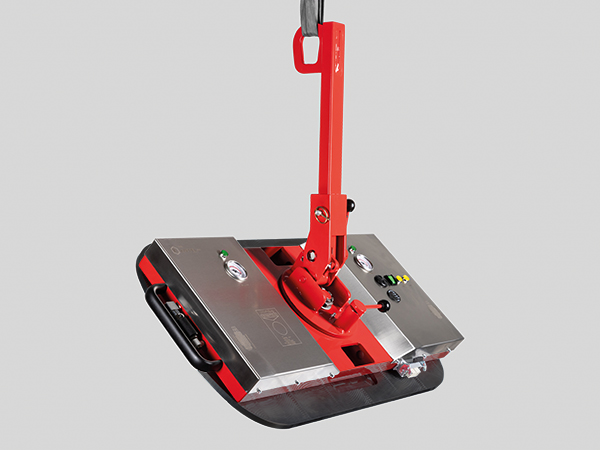

Vacuum lifter for mounting

Technical specifications

Inquire now

» Back to overview

DSA – 12V

Short description

Meets the requirements for site operation according to DIN EN 13155

Filter area

up to 450 kg

Dual circuit system

2 vacuum circuits, independent of each other

Suction pad

1 piece, Typ APK

Load capacity

300 kg

Turn

360° manual, lockable every 45°

Sway

90° manual, lockable every 22,5°

Power supply

12 V battery mains-independent with integrated charger

Furnishing

Voltage indicator, shows the battery charge level
Vacuum display, shows the current vacuum level
Acoustic warning signal when vacuum is undershot

Service

Using buttons on the device, suction-release with manual valves; Option: Suction-release with quick-release function.

Own weight

ca. 45 kg

Options

Continuously swiveling, with lowering cylinder
Cable or wireless remote control for suction, release with quick-release function

Our expertise: Made to measure

Do you have special requirements due to your particular elements or a demanding environment? Here, too, we can help: In addition to our ready-made solutions, we are also happy to work out a custom-made product exactly for your requirements. In doing so, you can successfully continue your projects with vacuum lifters that have been specially designed for you. Just give us a call and we will discuss the details.
