Vacuum lifter for mounting
Technical specifications
Inquire nowDSH2 - 12V-1000
Short description
Meets the requirements for site operation according to DIN EN 13155. The DSH2 - 12V-1000 can be combined with our counterweight systems. The DSH - 12V-1000 can be combined with many special suction frames.
Filter area
from 750 to 1.000 kg
Dual circuit system
2 vacuum circuits, independent of each other
Suction pad
14 pieces, type 150K
Extensions
4 piece
Load capacity

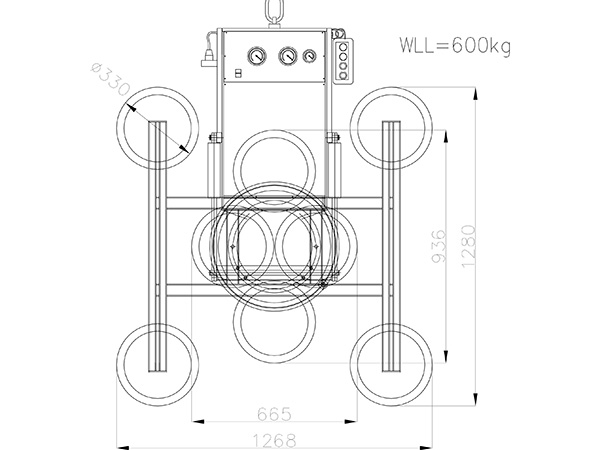

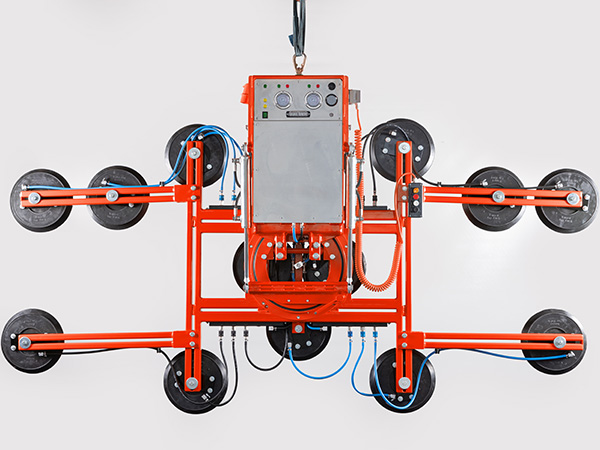

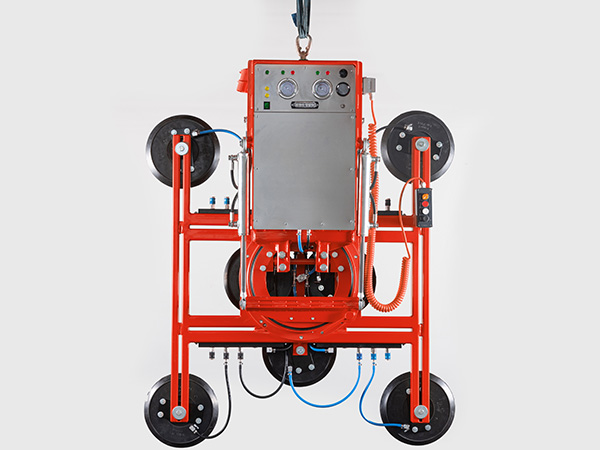

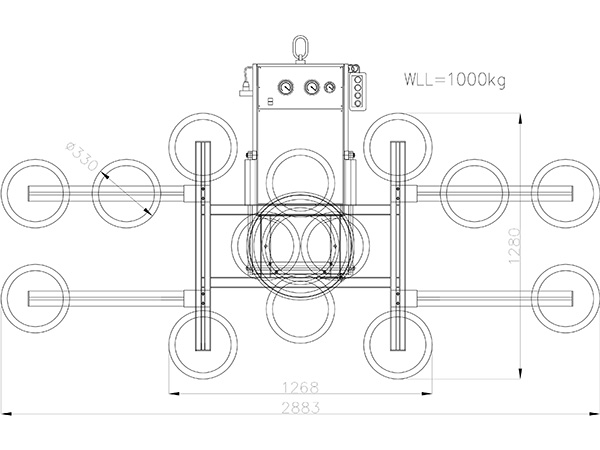

600 kg with 8 suction cups, without extensions 1000 kg with 14 suction cups, with 4 extensions
Turn
360° manual, all 90° lockable
Sway
90° hydraulic
Power supply
12V battery mains-independent with integrated charger
Furnishing
- Voltage indicator, shows the battery charge level
- Vacuum display, shows the current vacuum level
- Acoustic warning signal when vacuum is undershot
Service
Cable remote control, suction-release with quick-release function, slew up / down
Own weight
approx. 250 kg
Options
- Radio remote control for suction, release with quick release function
- Slewing up/down
