Vacuum lifter for mounting

Technical specifications

DSKEB2 - 12V

Short description

Meets the requirements for site operation according to DIN EN 13155. The DSKEB2 - 12V can be combined with many of our mounting devices.

Filter area

from 600 to 750 kg

Dual circuit system

2 vacuum circuits, independent of each other

Suction pad

10 pieces, type 150K

Extensions

4 pieces short, 2 pieces long

Load capacity

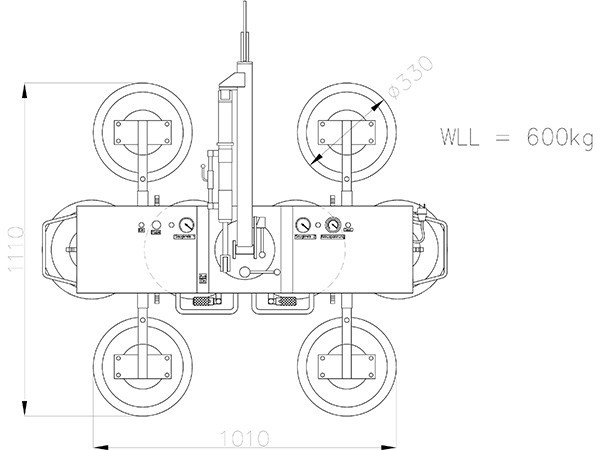

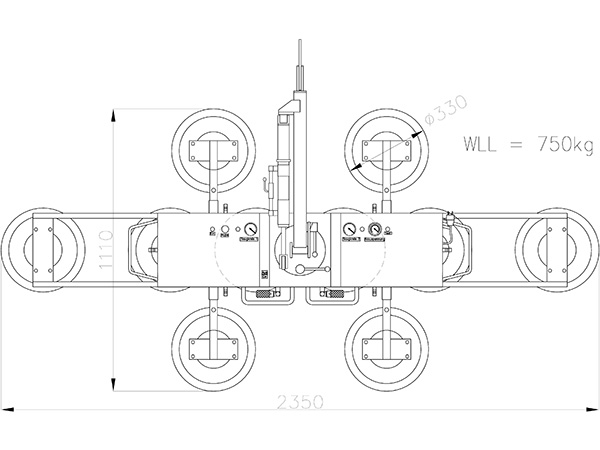

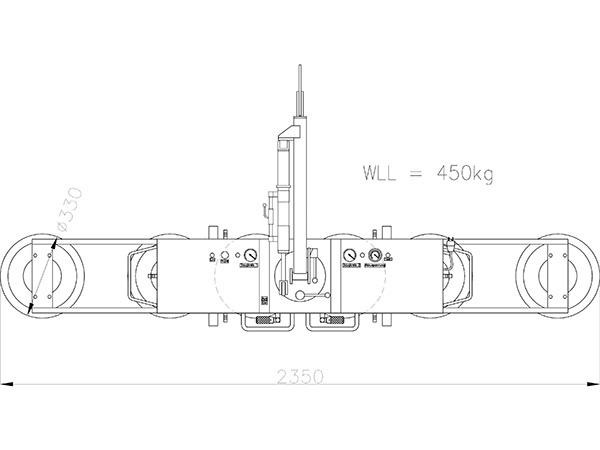

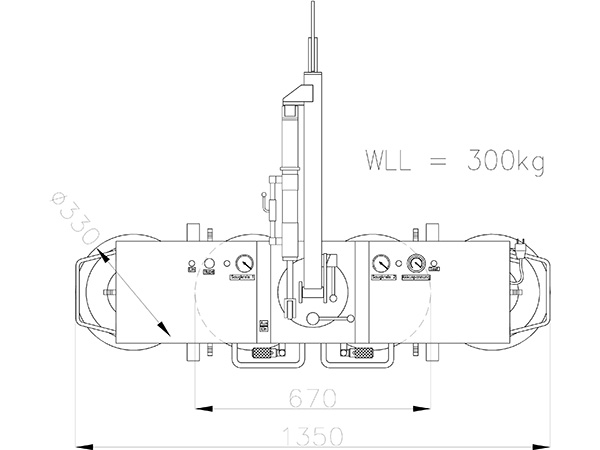

300 kg with 4 suction cups, without extensions 450 kg with 6 suction cups, with 2 extensions 600 kg with 8 suction cups, with 4 extensions 750 kg with 10 suction cups, with 6 extensions

Turn

360° manual, lockable every 45

Sway

90° manual, stepless, with lowering cylinder

Power supply

12V battery mains-independent with integrated charger

Furnishing

Voltage indicator, shows the battery charge level
Vacuum display, shows the current vacuum level
Acoustic warning signal when vacuum is undershot

Service

Via button on the device, suction-release with quick-release function

Own weight

approx. 90 kg

Options

Cable or radio remote control for suction, release with quick release function
Suspension for rotating / slewing; electric

Our expertise: Made to measure

Do you have special requirements due to your particular elements or a demanding environment? Here, too, we can help: In addition to our ready-made solutions, we are also happy to work out a custom-made product exactly for your requirements. In doing so, you can successfully continue your projects with vacuum lifters that have been specially designed for you. Just give us a call and we will discuss the details.
