Vacuum lifter for mounting

Technical specifications

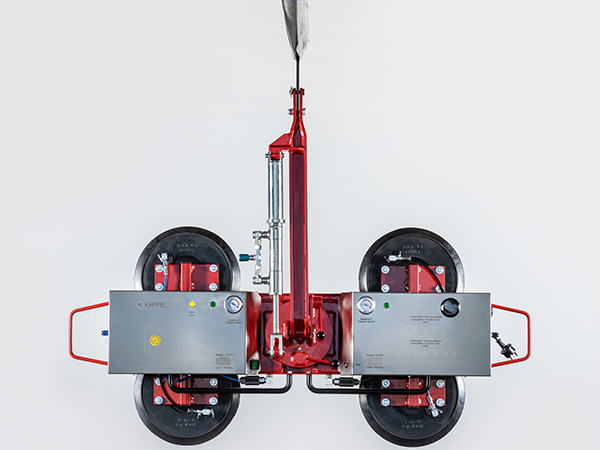

DSKED2 - 12V

Short description

Meets the requirements for site operation according to DIN EN 13155. The DSKED2 - 12V can be combined with many of our mounting devices.

Filter area

up to 450 kg

Dual circuit system

2 vacuum circuits, independent of each other

Suction pad

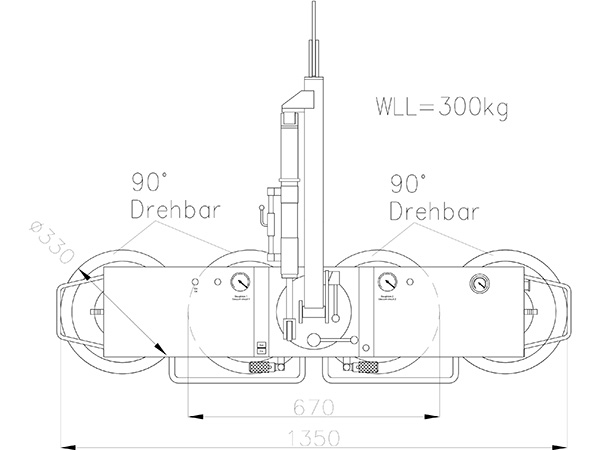

6 pieces, type 150K, 2 pieces each on the device 90° rotatable

Extensions

2 piece

Load capacity

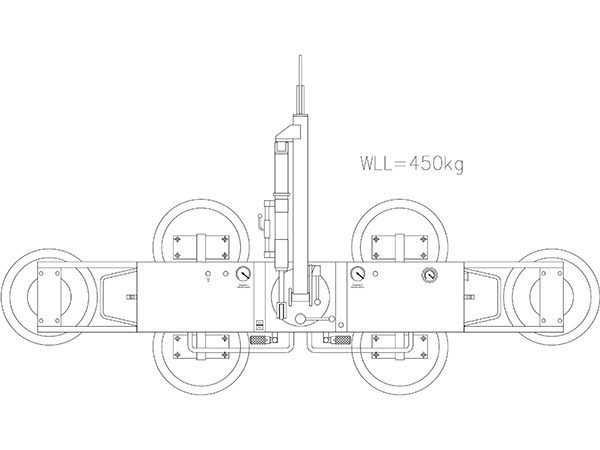

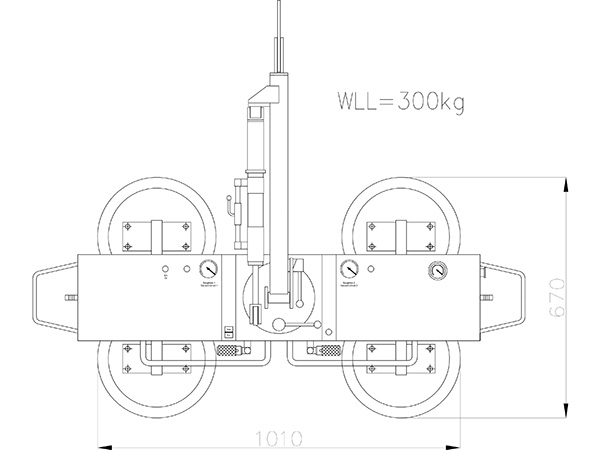

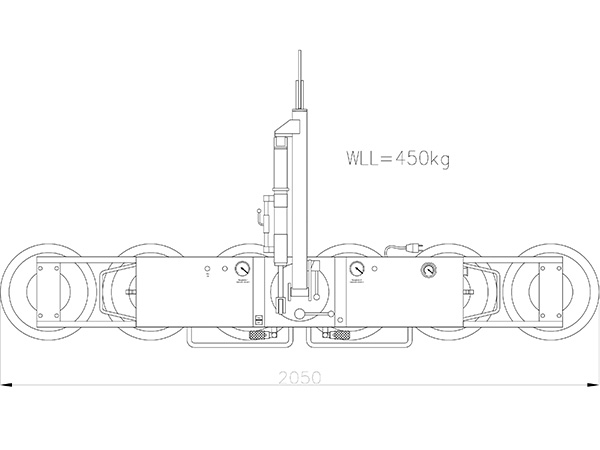

300 kg with 4 suction cups, without extensions 450 kg with 6 suction cups, with extensions

Turn

360° manual, lockable every 45

Sway

90° manual, stepless, with lowering cylinder

Power supply

12 V battery mains-independent with integrated charger

Furnishing

Voltage indicator, shows the battery charge level
Vacuum display, shows the current vacuum level
Acoustic warning signal when vacuum is undershot

Service

Hand valves, suction/ release valves

Own weight

approx. 65 kg

Options

Cable or radio remote control for suction, release with quick release function
Suspension for rotating / slewing; electric

Our expertise: Made to measure

Do you have special requirements due to your particular elements or a demanding environment? Here, too, we can help: In addition to our ready-made solutions, we are also happy to work out a custom-made product exactly for your requirements. In doing so, you can successfully continue your projects with vacuum lifters that have been specially designed for you. Just give us a call and we will discuss the details.
