Vacuum lifter for mounting
Technical specifications
Inquire now
DSKEW2 – 12V
Short description
Meets the requirements for site operation according to DIN EN 13155. The DSKEW2 - 12V can be combined with many of our mounting devices.
Filter area
up to 450 kg
Dual circuit system
2 vacuum circuits, independent of each other
Suction pad
8 pieces, type 150K
Extensions

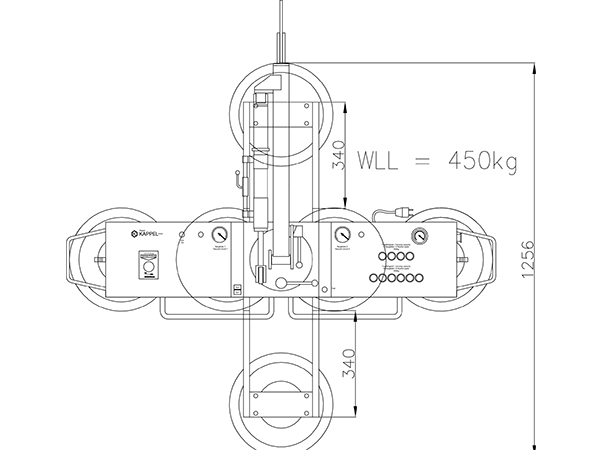

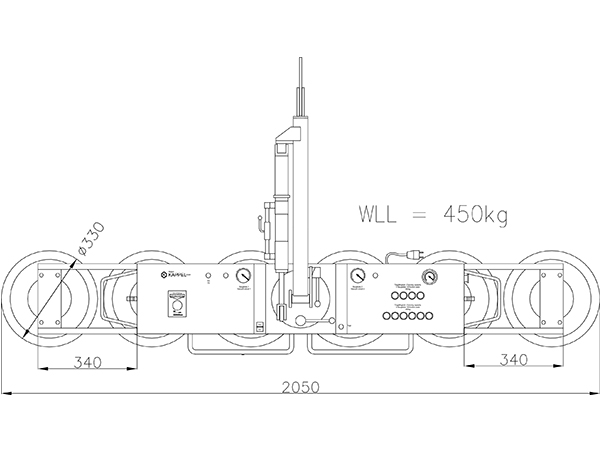

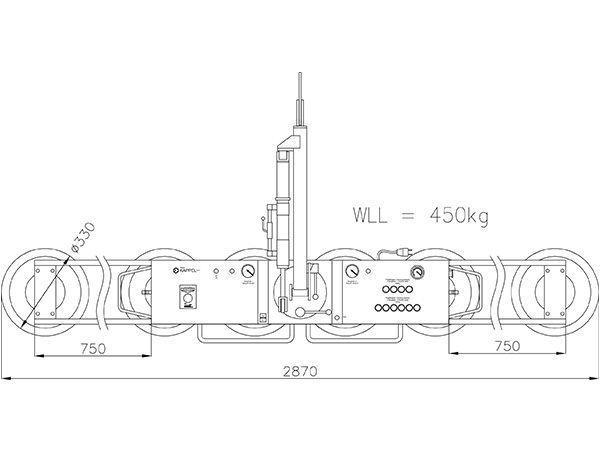

4 pieces (2x L=340mm, 2x L=750mm)
Load capacity

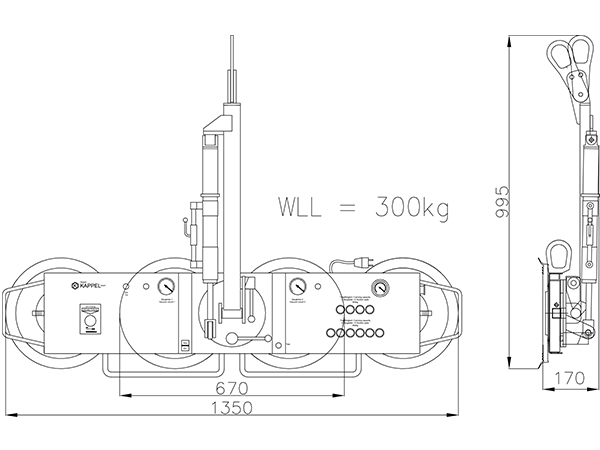

300 kg with 4 suction cups without extensions
450 kg with 6 or 8 suction cups, with extensions
Turn
360° manual, lockable every 45
Sway
90° manual, stepless, with lowering cylinder
Power supply
12 V battery mains-independent with integrated charger
Furnishing
- Voltage indicator, shows the battery charge level
- Vacuum display, shows the current vacuum level
- Acoustic warning signal when vacuum is undershot
Service
Hand valves, suction/ release valves
Own weight
approx. 55 kg
Options
- Cable or radio remote control for suction, release with quick release function
- Suspension for rotating/slewing electric
