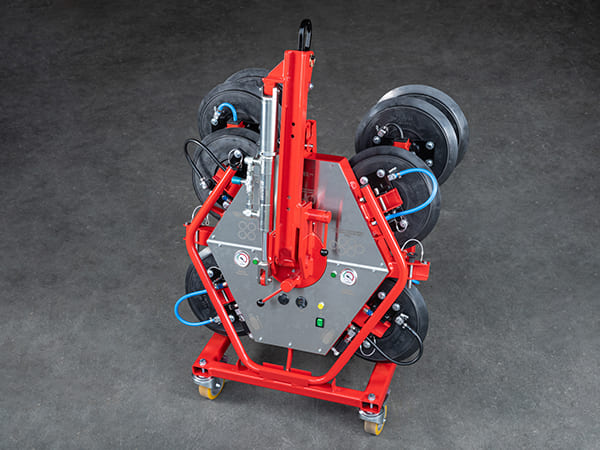

Vacuum lifter for mounting
Technical specifications
Inquire nowDSKZ2 - 12V
Short description
Meets the requirements for site operation according to DIN EN 13155. The DSKZ2 - 12V can be combined with many of our mounting devices.
Filter area
from 450 to 600 kg
Dual circuit system
2 vacuum circuits, independent of each other
Suction pad
8 pieces, type 150K
Extensions
4 piece
Load capacity

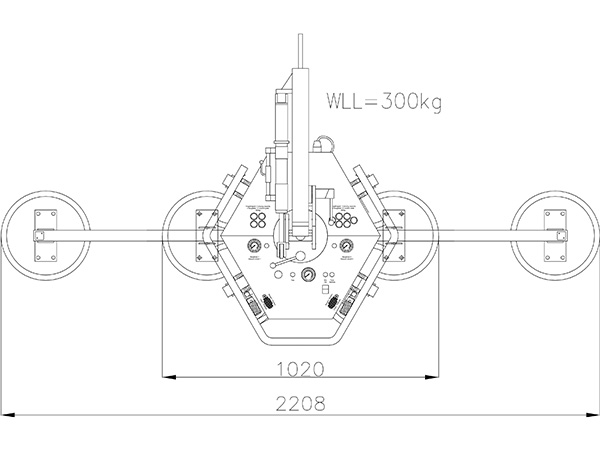

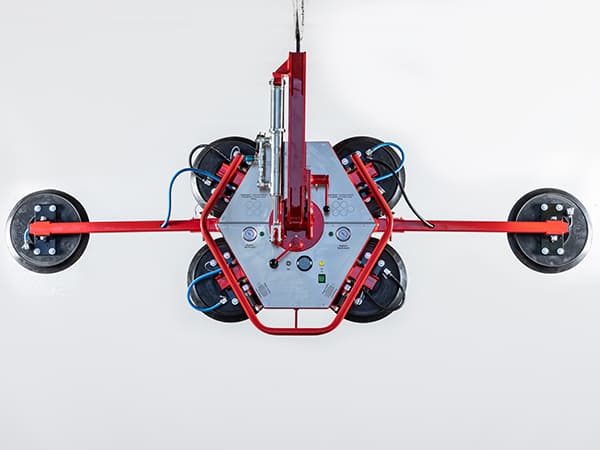

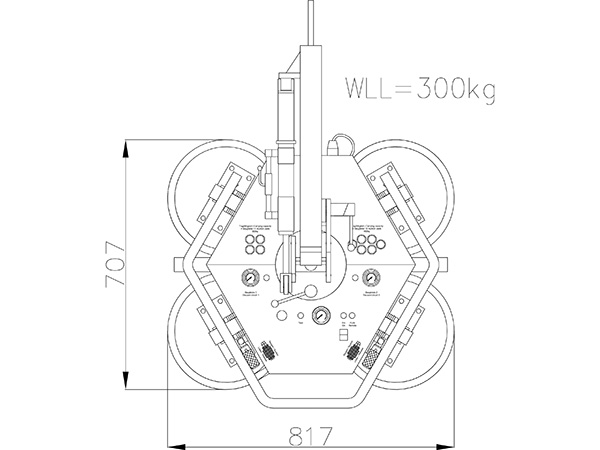

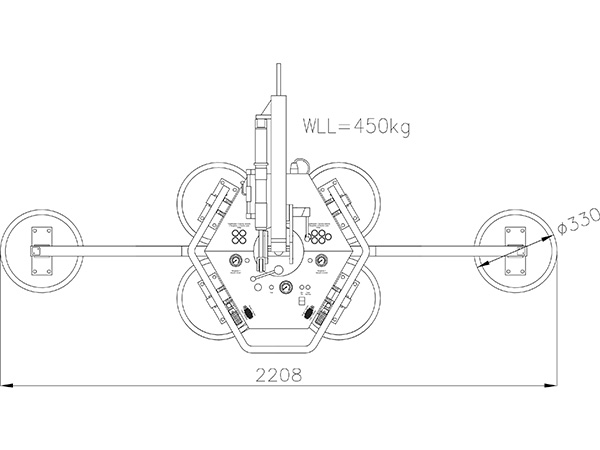

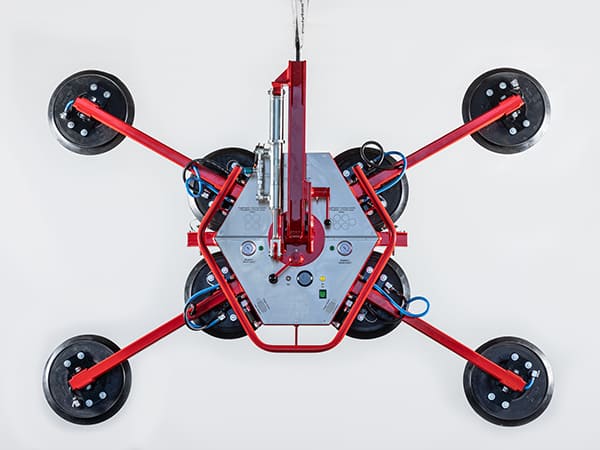

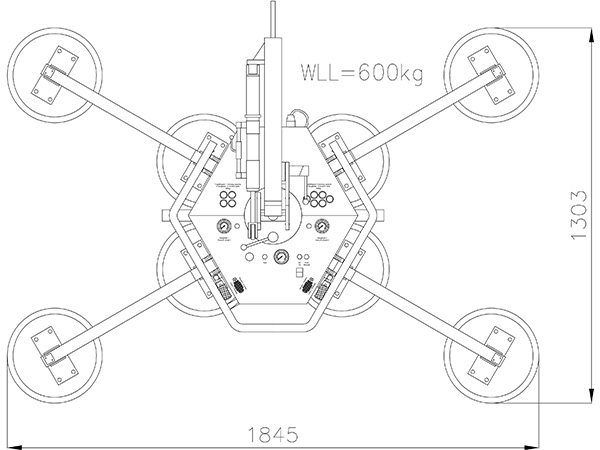

300 kg with 4 suction cups, without extensions 450 kg with 6 suction cups, with extensions 600 kg with 8 suction cups, with extensions
Turn
360° manual, lockable every 45
Sway

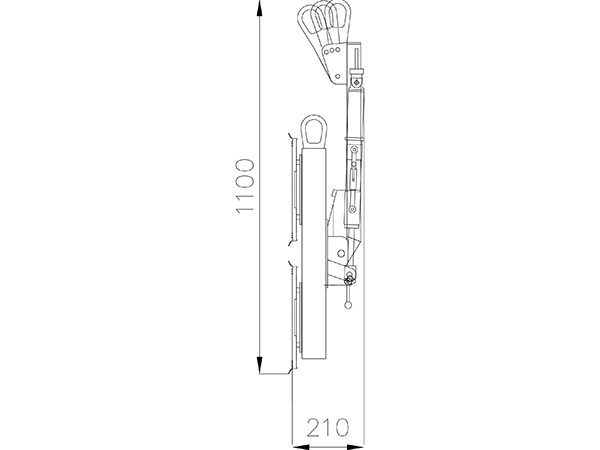

90° manual, stepless, with lowering cylinder
Power supply
12V battery mains-independent with integrated charger
Furnishing
- Voltage indicator, shows the battery charge level
- Vacuum display, shows the current vacuum level
- Acoustic warning signal when vacuum is undershot
Service
Hand valves, suction/ release valves
Own weight
approx. 92 kg
Options
- Cable or radio remote control for suction, release with quick release function
- Suspension for rotating / slewing; electric
- Conversion kit for curved panes
