Vacuum lifter for mounting
Technical specifications
Inquire nowDSL2 - 12V
Short description
Meets the requirements for site operation according to DIN EN 13155. The DSL2 - 12V can be combined with many of our mounting devices.
Filter area
up to 450 kg
Dual circuit system
2 vacuum circuits, independent of each other
Suction pad
6 pieces, type 150K
Extensions
4 piece
Load capacity

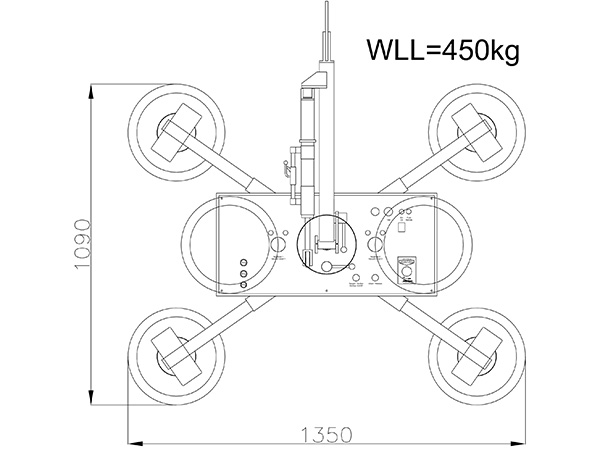

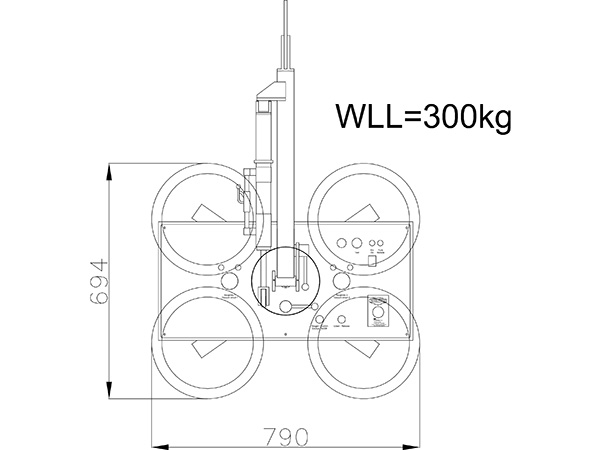

150 kg with 2 suction cups, without extensions 300 kg with 4 suction cups, without and with extensions 450 kg with 6 suction cups, with extensions
Turn
360° manual, lockable every 45
Sway
90° manual, stepless, with lowering cylinder
Power supply
12V battery mains-independent with integrated charger
Furnishing
- Voltage indicator, shows the battery charge level
- Vacuum display, shows the current vacuum level
- Acoustic warning signal when vacuum is undershot
Service
Via button on the device, suction-release with quick-release function
Own weight
approx. 50 kg
Options
- Cable or radio remote control for suction, release with quick release function
- Suspension for rotating / slewing; electric
