Vacuum lifter for mounting

Technical specifications

DSLMH2 - 12V-750

Short description

Meets the requirements for site operation according to DIN EN 13155. The DSLMH2 - 12V-750 can be combined with our counterweight systems. The DSLMH2 - 12V-750 can be combined with many special suction frames

Filter area

from 600 to 750 kg

Dual circuit system

2 vacuum circuits, independent of each other

Suction pad

10 pieces, type 150K

Extensions

2 piece

Load capacity

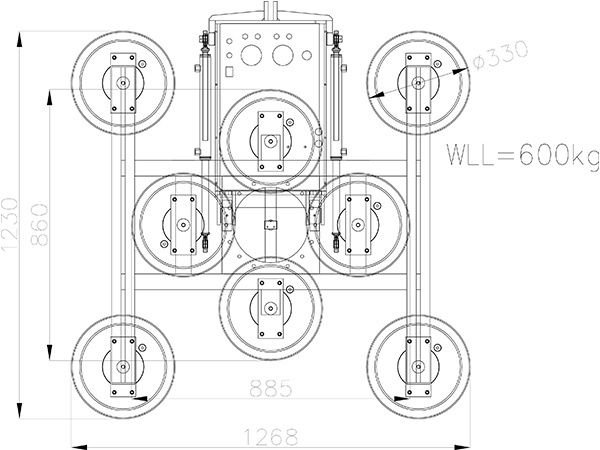

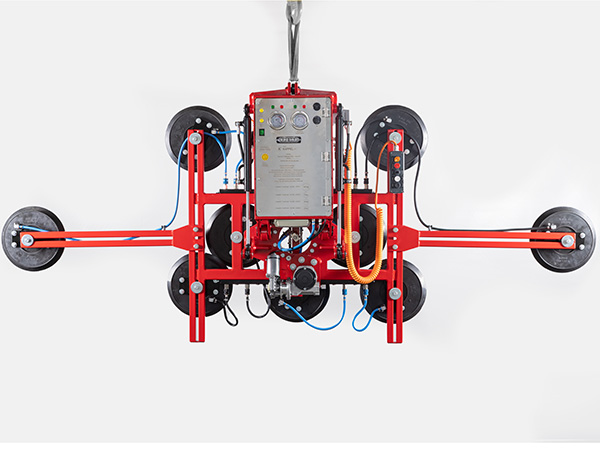

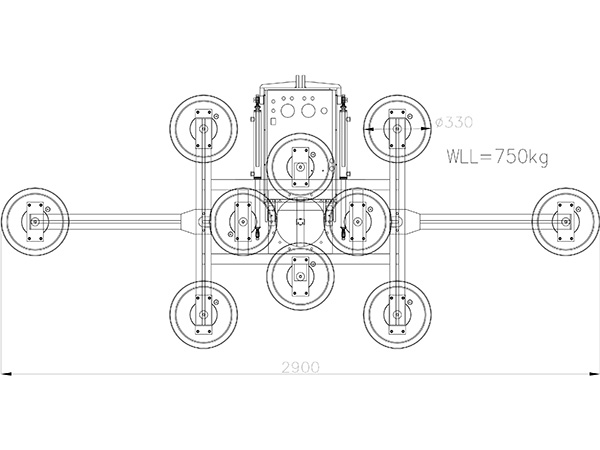

600 kg with 8 suction cups, without extensions 750 kg with 10 suction cups, with 2 extensions

Turn

360° electric

Sway

90° hydraulic

Power supply

12V battery mains-independent with integrated charger

Furnishing

Voltage indicator, shows the battery charge level
Vacuum display, shows the current vacuum level
Acoustic warning signal when vacuum is undershot

Service

Cable remote control, suction-release with quick-release function, slew up / down, rotate left / right

Own weight

approx. 180 kg

Options

Radio remote control for suction, release with quick release function
Slew up/down, rotate left/right

Our expertise: Made to measure

Do you have special requirements due to your particular elements or a demanding environment? Here, too, we can help: In addition to our ready-made solutions, we are also happy to work out a custom-made product exactly for your requirements. In doing so, you can successfully continue your projects with vacuum lifters that have been specially designed for you. Just give us a call and we will discuss the details.
