Vacuum lifter for mounting

Technical specifications

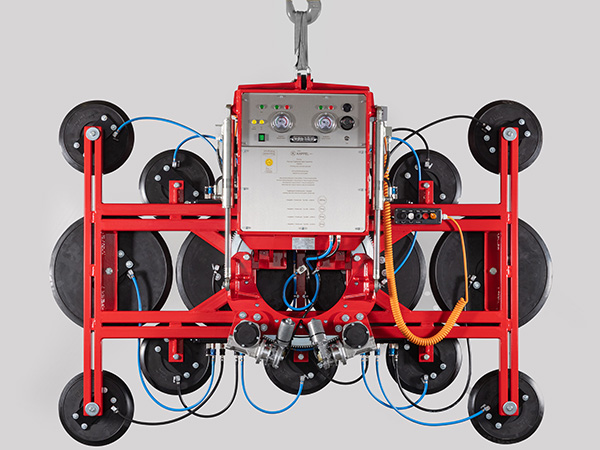

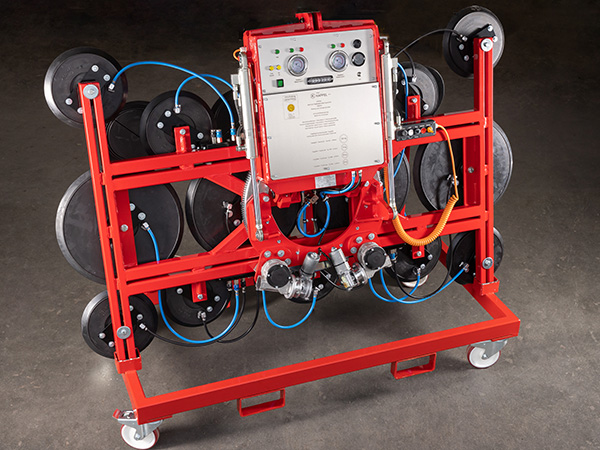

DSMH2 - 12V-2000

Short description

Meets the requirements for site operation according to DIN EN 13155. The DSLMH2 - 12V-2000 can be combined with our counterweight systems. The DSLMH2 - 12V-2000 can be combined with many special suction frames

Filter area

Dual circuit system

2 vacuum circuits, independent of each other

Suction pad

4 pieces, type 400K and 16 pieces, type 150K

Extensions

4 piece

Load capacity

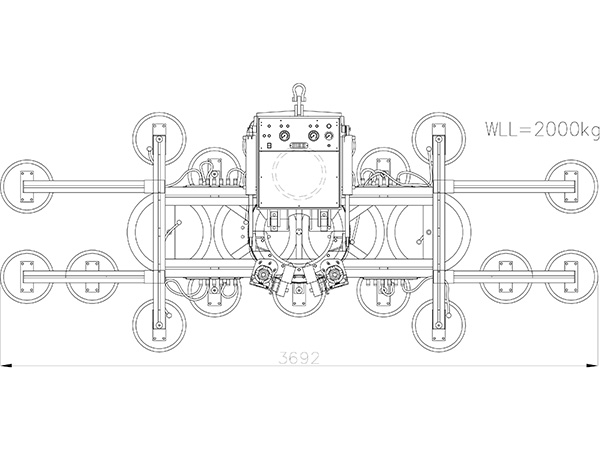

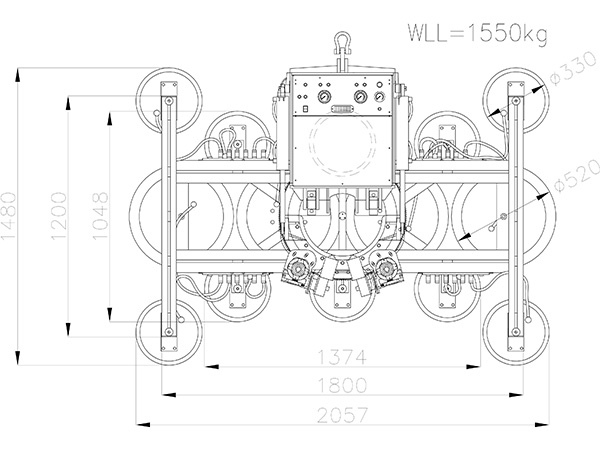

1550 kg with 14 suction cups, without extensions 2000 kg with 20 suction cups, with 4 extensions

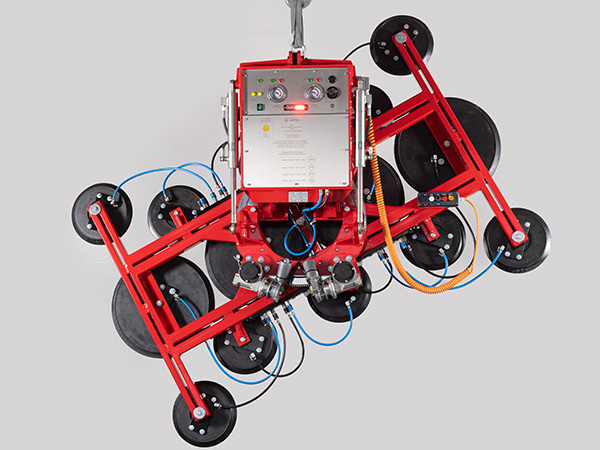

Turn

360° electric

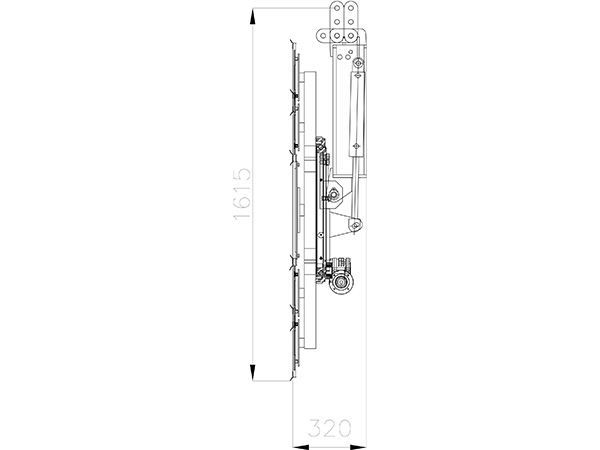

Sway

90° hydraulic

Power supply

12V battery mains-independent with integrated charger

Furnishing

Voltage indicator, shows the battery charge level
Vacuum display, shows the current vacuum level
Acoustic warning signal when vacuum is undershot

Service

Cable remote control, suction-release with quick-release function, slew up / down, rotate left / right

Own weight

approx. 420 kg

Options

Radio remote control for suction, release with quick release function
Slew up/down, rotate left/right

Our expertise: Made to measure

Do you have special requirements due to your particular elements or a demanding environment? Here, too, we can help: In addition to our ready-made solutions, we are also happy to work out a custom-made product exactly for your requirements. In doing so, you can successfully continue your projects with vacuum lifters that have been specially designed for you. Just give us a call and we will discuss the details.
