Vacuum lifter for mounting

Technical specifications

DSZ2 - 12V-1050

Short description

Meets the requirements for site operation according to DIN EN 13155. The DSZ2- 12V-1050 can be combined with many of our mounting devices.

Filter area

from 750 to 1.000 kg

Dual circuit system

2 vacuum circuits, independent of each other

Suction pad

14 pieces, type 150K

Extensions

6 piece

Load capacity

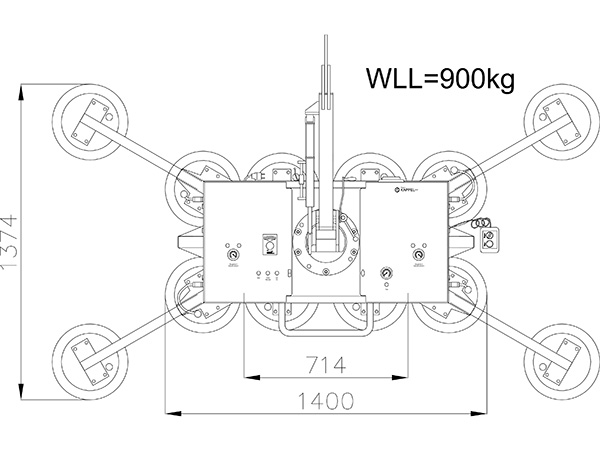

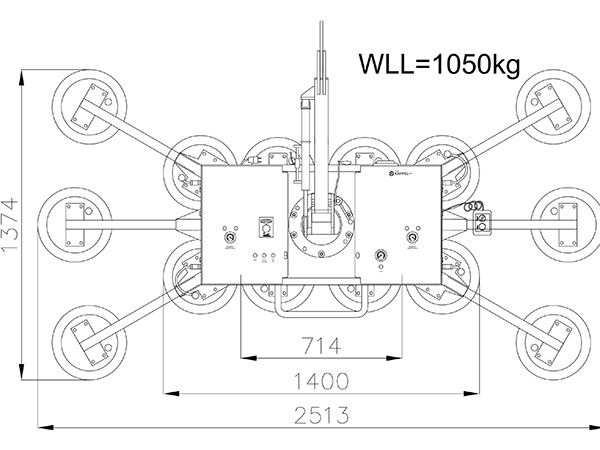

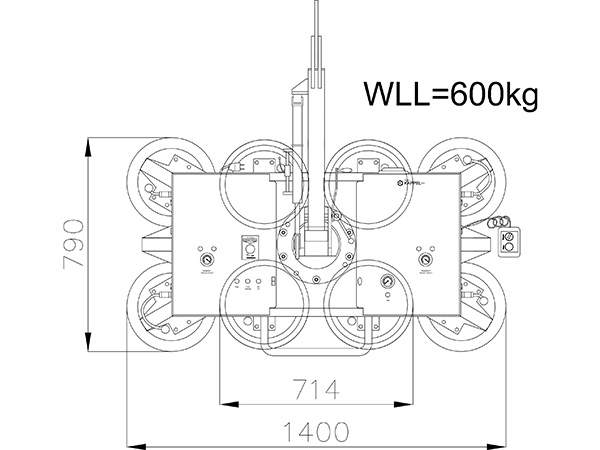

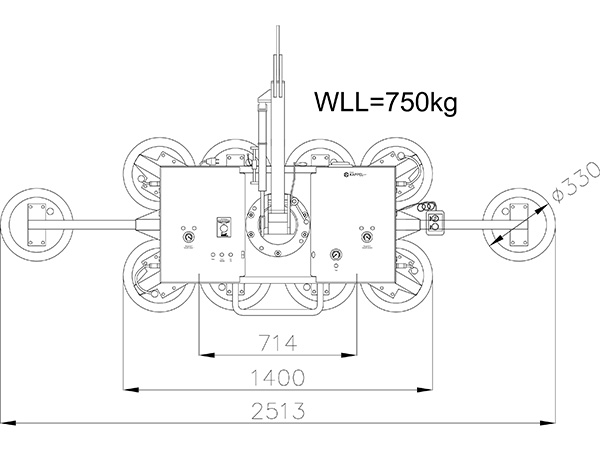

600 kg with 8 suction cups, without extensions 750 kg with 10 suction cups, with 2 extensions 900 kg with 12 suction cups, with 4 extensions 1050 kg with 14 suction cups, with 6 extensions

Turn

360° manual, lockable every 90 °

Sway

90° manual, stepless, with lowering cylinder

Power supply

12V battery mains-independent with integrated charger

Furnishing

Voltage indicator, shows the battery charge level
Vacuum display, shows the current vacuum level
Acoustic warning signal when vacuum is undershot

Service

Cable remote control, suction-release with quick-release function

Own weight

approx. 145 kg

Options

Radio remote control for suction, release with quick release function
