Vacuum lifter for mounting

Technical specifications

DSZ2 - 12V-1500

Short description

Meets the requirements for site operation according to DIN EN 13155. The DSZ2 - 12V-1500 can be combined with many of our mounting devices.

Filter area

from 1.000 to 1.500 kg

Dual circuit system

2 vacuum circuits, independent of each other

Suction pad

6 pieces, type 400K and 6 pieces, type 150K

Extensions

6 piece

Load capacity

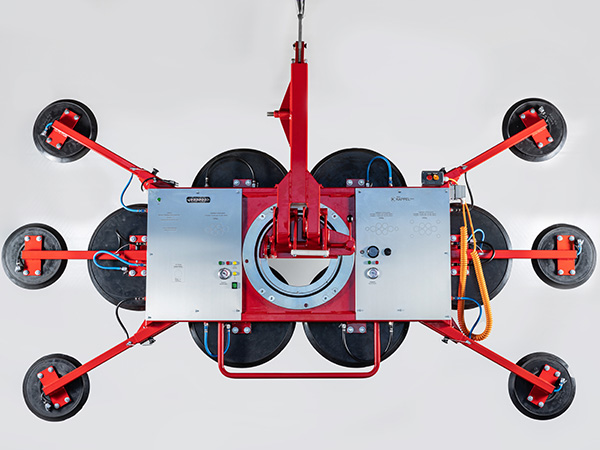

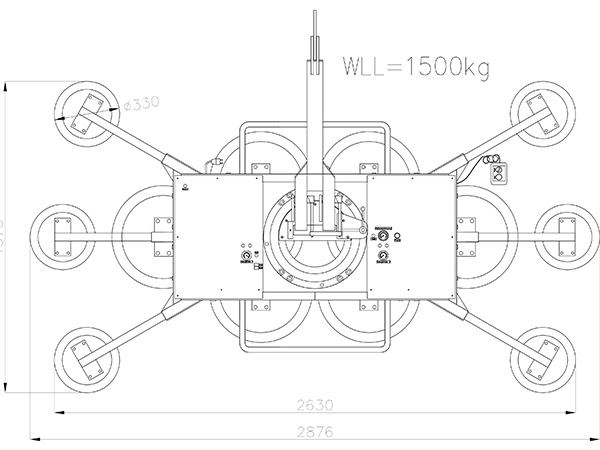

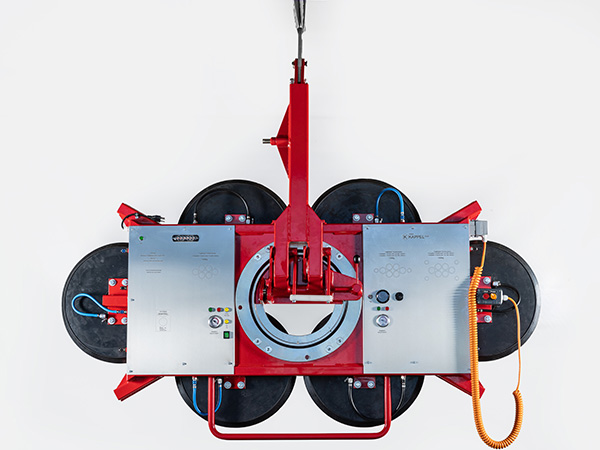

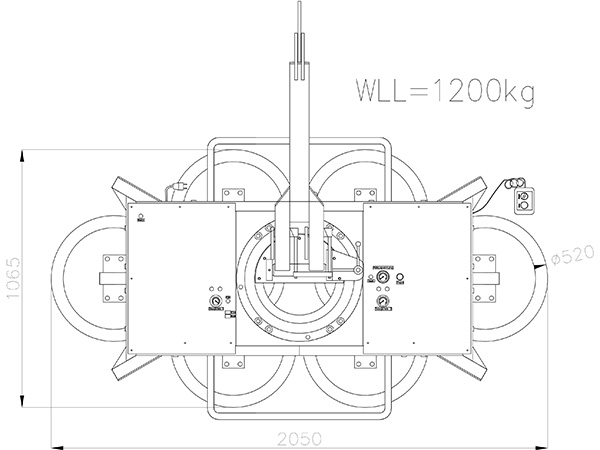

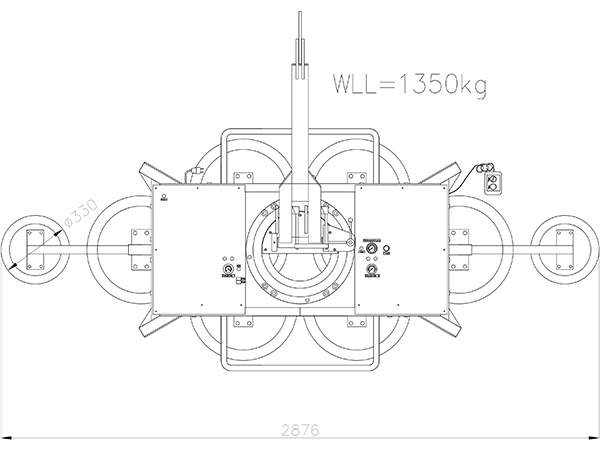

1200 kg with 6 suction cups, without extensions 1350 kg with 8 suction cups, with 2 extensions 1500 kg with 12 suction cups, with 6 extensions

Turn

360° manual, all 90° lockable

Sway

90° manual, stepless, with lowering cylinder

Power supply

12V battery mains-independent with integrated charger

Furnishing

Voltage indicator, shows the battery charge level
Vacuum display, shows the current vacuum level
Acoustic warning signal when vacuum is undershot

Service

Cable remote control, suction-release with quick-release function

Own weight

approx. 250 kg

Options

Radio remote control for suction, release with quick release function

Our expertise: Made to measure

Do you have special requirements due to your particular elements or a demanding environment? Here, too, we can help: In addition to our ready-made solutions, we are also happy to work out a custom-made product exactly for your requirements. In doing so, you can successfully continue your projects with vacuum lifters that have been specially designed for you. Just give us a call and we will discuss the details.
